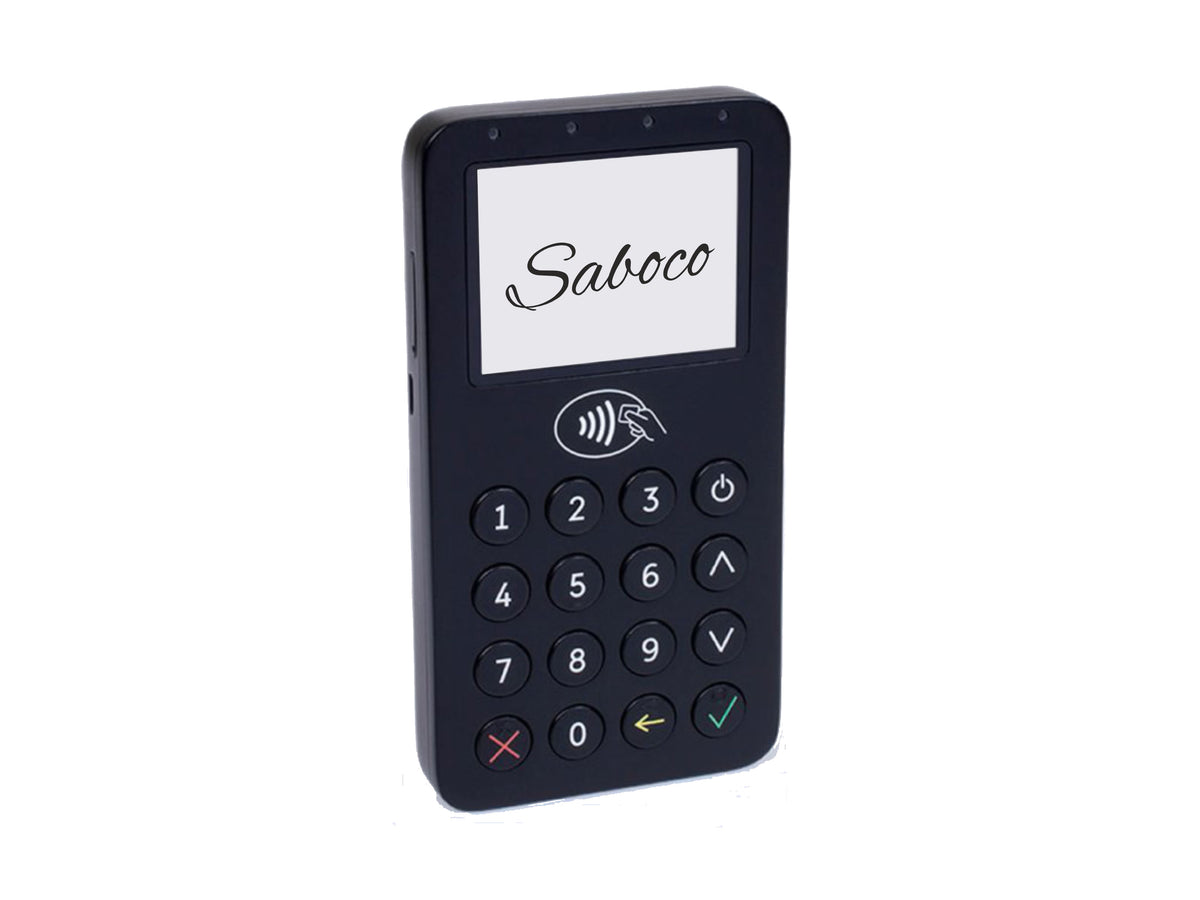

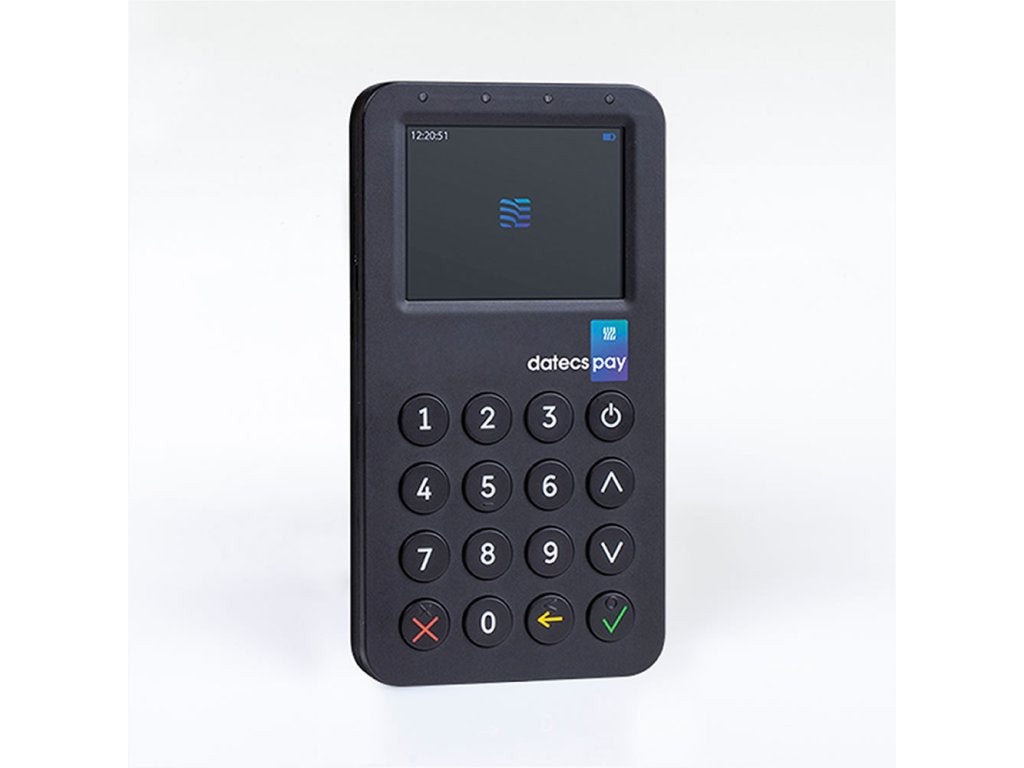

POS Datecs BluePad-55 V2

BP-55 este singurul terminal pentru plati bancare care se conecteaza direct la casa de marcat Datecs prin intermediul bazei sale suport, cu functie de incarcare. Transferul sumei din casa de marcat in POS, emiterea  bonului fiscal si a chitantei bancare se fac in mod automat si integrat.

Printre caracteristice noului echipament BluePad-55 se numara ecranul color si bateria de capacitate mare, echipamentul fiind de asemenea dotat cu Bluetooth pentru toate tipurile de plata cu card – banda magnetica, EMV Chip & PIN si contactless.

BluePad-55 poate fi conectat cu usurinta la diverse accesorii precum imprimante mobile, scannere de coduri de bare si statii de incarcare.

Sisteme de operare compatibile:  iOS, Android, Windows Mobile.

SPECIFICATII TEHNICE

• CPU: Secure ARM Cortex M3
• Butoane: On/Off; 10 butoane numerice si 5 butoane cu functii
• Display: 320 x 240 px touchscreen display
• Magnetic Card Reader: Triple track bi-directional
• Smart Card Reader: Landing type
• Contactless Reader (optional): NFC-A, ISO 14443 Type A; NFC-B, ISO 14443 Type B; NFC-F, Felica; NFC-V, ISO 15693
• Contactless Payments (optional): VISA payWave, MasterCard PayPass; American Express; DPAS (Discover); China UnionPay; J/Speedy (JCB); Common.SECC
• Connectors: RS-232 contact pins; USB Type-C port; SAM card slot (optional); SIM card slot (optional)
• Wired Communication: USB (device)
• Sisteme de operare compatibile: iOS; Android; Windows
• Bluetooth (optional): BT version 4.2 Low Energy
• Wireless (optional): Wi-Fi IEEE 802.11 b/g/n
• Cellular Module (optional): 2G/3G/4G communication
• LED Indication: Contactless payment status
• Audio Features: Electromagnetic buzzer
• Power Supply: DC 5 V through USB; DC 5 V through contact pins
• Baterie: BaterieLi-Ion reincarcabila 3.7 V, 1180 mAh
• Fiabilitate: 500,000 cicluri chip card; 1,000,000 magnetic card swipes; 1,000,000 button clicks
• Certificate: CE; FCC; PCI PTS 4.x; EMV Level 1; EMV Level 2; EMV Level 1 Contactless; TQM
• Dimensiuni: W x D x H 71 x 133 x 19 mm
• Greutate: 180 g
• Temperatura operare: -10 °C to 40 °C / 5 to 70% RH
• Temperatura depozitare: -15 °C to 50 °C / 5 to 70% RH
• Test cadere: 1.2 m, fete si margini
